九州・沖縄洪水ハザードマップ

サポート終了/EoS
ASTI | アプリ Apps | 九州・沖縄洪水ハザードマップ Flood Checker in Kyushu and Okinawa
App Storeサイトへ  to Download Site

アプリ概要

九州7県(福岡県,佐賀県,長崎県,熊本県,大分県,宮崎県,鹿児島県)と沖縄県の浸水想定区域と日本全国の避難所約12万6千件を収録した洪水ハザードマップアプリです。現在地または任意地点の想定最大浸水深と同じ行政区域にある浸水しない最近隣の避難所を検索することができます。浸水想定区域および避難所はいずれも平成24年度作成のデータを収録しています。はじめての土地で現地のハザードマップを所持していないときや,災害対応の机上訓練などにご利用ください。

ちなみに,本アプリはもともと全国版を公開しようとしていたところ,中部のデータだけ異様に多く,合計で1GByteを超えそうになったことからしぶしぶ地域別に分割公開したものになります。他地域については需要があれば製作する予定です。

なお,浸水深の表現方法や避難速度の設定については関西洪水ハザードマップのFAQをご覧ください。

使用方法

本アプリは災害時に使用するものではなく,事前の確認,机上訓練での使用を想定しています。緊急時に指定避難所が耐震補強中などの原因で開設されない場合もありますので,別途に近隣の避難所情報を市報などで必ず確認してください。

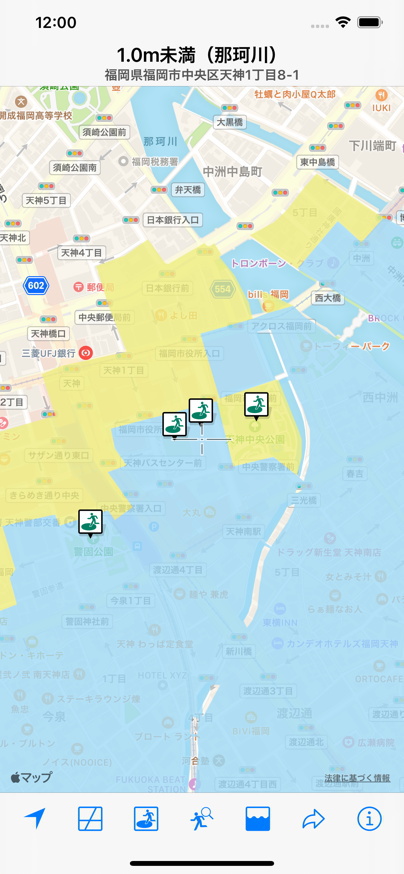

アプリを起動すると地図とともに画面中央にスコープが表示されます。地図を移動するごとに画面中央の想定浸水深と住所が表示されます。浸水想定区域が複数あると,その中から最大の浸水深が計算されて表示されます。ただし,表示する洪水予報・水位周知河川を指定している場合は,指定した河川の想定浸水区域の浸水深が表示されます。画面の避難所アイコンをタップすると避難所名と種別が吹き出し(コールアウト)に表示されます。吹き出し内のアイコンをタップすると,避難所の詳細な情報を確認することができます。

画面下にはツールバーがあり,機能は左から現在地表示,地図切り替え,避難地情報検索,避難所レイヤ表示・非表示,洪水予報・水位周知河川指定,指定自治体に移動,アプリ情報,となっています。避難地情報検索が本アプリのメインの機能になります。

1. 現在地表示

GNSSで取得した位置を画面中央に設定します。

2. 地図切り替え

地図,地図と衛星写真,衛星写真,と順に画面表示が切り替わります。

3. 避難所レイヤ表示・非表示

避難所アイコンの表示と非表示が切り替わります。縮尺が25万分の1より小さくなると自動的に非表示になります。動作が重いと感じるときにレイヤを非表示にすることで,表示速度を改善することができます。

4. 避難地情報検索

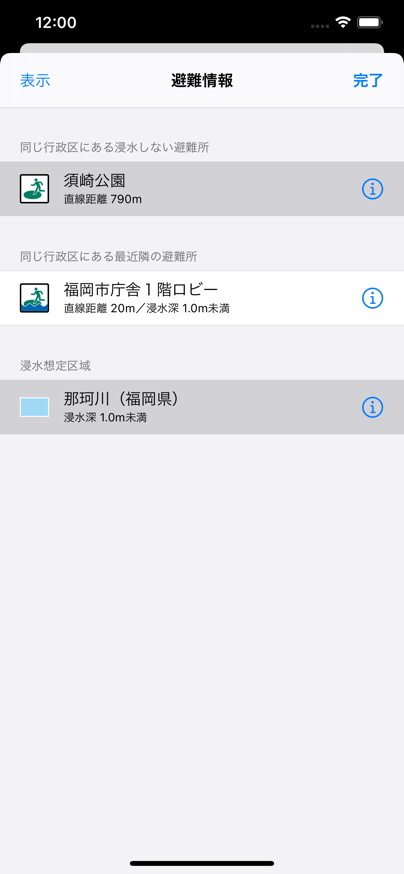

画面中心のスコープの位置から最も近い位置にある避難所と関連する浸水想定区域の一覧を表示します。捜索範囲は10kmです。避難所は1)同一行政界で浸水しない避難所,2)同一行政界にある浸水の恐れがある避難所,3)他の行政界にある浸水しない避難所,4)他の行政界にある浸水の恐れがある避難所,の最大4件が小さい番号順に検索されます。避難情報表示画面で避難所を選択して表示ボタンをタップすると,現在地と避難所がズームアップして表示されます。このとき,通常は直線距離とその避難時間が表示されますが,ネットワーク検索が可能であれば最短経路も表示されます。浸水区域も同時に表示することができます。

5. 洪水予報・水位周知河川指定

マップ画面表示する洪水予報・水位周知河川の想定浸水区域を選択できます。捜索範囲は1kmです。区域選択後に完了ボタンをタップすると,画面に浸水区域が表示されます。

6. 指定自治体に移動

日本全国の地方自治体一覧が表示され,選択することで画面が指定自治体の役所の位置に移動します。都道府県庁の場合,リスト右のアイコンをタップすると各庁舎位置に移動します。役所が管轄する行政区域にない場合,管轄する行政区域内にある最も大きな(人口の多い管轄の)出張所に移動します。

7. アプリ情報

浸水想定区域の凡例,使用上の注意,使用データの出典,免責事項が表示されます。

データ出典

  1. 国土数値情報 浸水想定区域データ(平成24年度作成,国土交通省)
  2. 国土数値情報 避難施設データ(平成24年度作成,国土交通省)

備考

  1. 表示項目の誤字脱字には細心の注意を払っていますが,お気づきの点があればご連絡ください。
  2. 耐震補強などによる避難所の一時的な変更は反映されていませんのでご注意ください。
  3. ルート検索機能は路地などが反映されず,検索結果が正しくない可能性がありますのでご了承ください。
  4. 浸水想定区域データは平成23年度時点のデータになります。
  5. 本アプリはかなり重い部類に入ります。機種によってはフリーズしたように感じるかもしれませんので,逐次解析をなくしたバージョンも検討中です。

バージョン履歴

v2.3.4 2021年5月31日

最終バージョン

v2.3.3 2021年2月23日

iOS14のサポート

v2.3.2 2019年11月14日

iOS13のサポート

ダークモードのサポート

v2.3.1 2019年9月19日

iOS 12のサポート

iPad Pro(第3世代)のサポート

バグの修正

v2.3 2017年11月29日

iOS 11とiPhone Xのサポート

避難所の所属自治体の改訂(富谷市)

v2.2.1 2016年5月3日

行政区別避難所検索が無効となるバグの修正

v2.2 2016年4月30日

iPadとiOS 9のサポート

避難所の所属自治体の改訂(栃木市,滝沢市,大網白里市)

v2.1.1 2015年8月13日

表示縮尺に関係なく浸水深を表示するよう修正

洪水検索範囲の修正

アイコンの変更

v2.1 2015年2月24日

iOS 8に対応

iPhone 6およびiPhone 6 Plusに対応

ジオコーディングの仕様変更に対応

アプリサイズの低減

v1.0 2014年6月20日

新規リリース


Outline

This app is a viewer of flood hazard maps in Kyushu, Japan which includes Fukuoka, Saga, Nagasaki, Kumamoto, Oita, Miyazaki, Kagoshima and Okinawa prefecture. The app has all shelter information in Japan and floods in Kyushu. Therefore, it can search the nearest shelter and flood level at a current location or an arbitrary one.

How to Use

Please do not use this app without a rehearsal in time of a disaster, because the app was created for a desktop exercise. And be sure to check neighboring shelter information by a newsletter, etc. in your city.

The app shows an address and a flood level at a central location on a screen map. If the location has some floods, the app searches for the maximum flood level in the floods. Tap a shelter icon, it shows a balloon with shelter name and types. If you tap the balloon then, the app shows detailed information about the shelter. There is a toolbar under the screen. The toolbar has seven functions: Show current location, Change map type, Search shelters, Shelter layer switch, Floods layer switch, Move and App information.

1. Show current location

It moves the center of a screen map to a current location.

2. Change map type

It changes a map type in order of a map, a hybrid, and an aerial photograph.

3. Shelter layer switch

It turns on/off shelter icons. If the map scale is less than 1/250000, the icons are hidden automatically.

4. Search shelters

It searches the nearest shelter from a location that is the center of a screen map. And changes to detail check mode. You can check the nearest shelter and related floods in this mode. The finish is to tap the “Done” button.

5. Set target flood

You can choose a displaying flood. If you set the flood, the app shows the flood level of only chosen flood.

6. Move

It shows a local government list in Japan. If you select the government, the center of the screen map moves to a location of the selected government office.

7. App Information

It is displayed a legend, notices, data sources and exemption from liability.

Data Sources

  1. National Land Numerical Information, Flood Zones (2012, MLIT Japan)
  2. National Land Numerical Information, Shelters (2012, MLIT Japan)

Notes

  1. If you have found any English mistakes please let us know.
  2. The app doesn’t provide updated information in the case of shelters being retrofitted or relocated.
  3. The shortest route given may not always be accurate.
  4. Flood zone data is accurate as of 2012.
  5. Proper nouns are displayed in Japanese only.

Version History

v2.3.4 May 31, 2021

The final version

v2.3.3 Feb. 23, 2021

Supported iOS 14.

v2.3.2 Nov. 14, 2019

Supported iOS 13.

Supported Dark Mode.

v2.3.1 Sept. 19, 2019

Supported iOS 12.

Supported iPad Pro 3rd Generation.

Fixed bugs.

v2.3 Nov. 29, 2017

Support for iOS 9.

Support for iPhone X.

Revised shelters information.

v2.2.1 Mar. 3, 2016

Fixed a bug.

v2.2 Apr. 30, 2016

Supported iPad and iOS 9.

Revised shelters information.

v2.1.1 Aug. 13, 2015

Improved operability.

Changed app icon.

v2.1 Feb. 24, 2015

Supported iOS 8.

Supported iPhone 6 and iPhone 6 Plus.

Fixed displaying an address in Japanese.

Reduced the app size.

v1.0 June 20, 2014

New release
